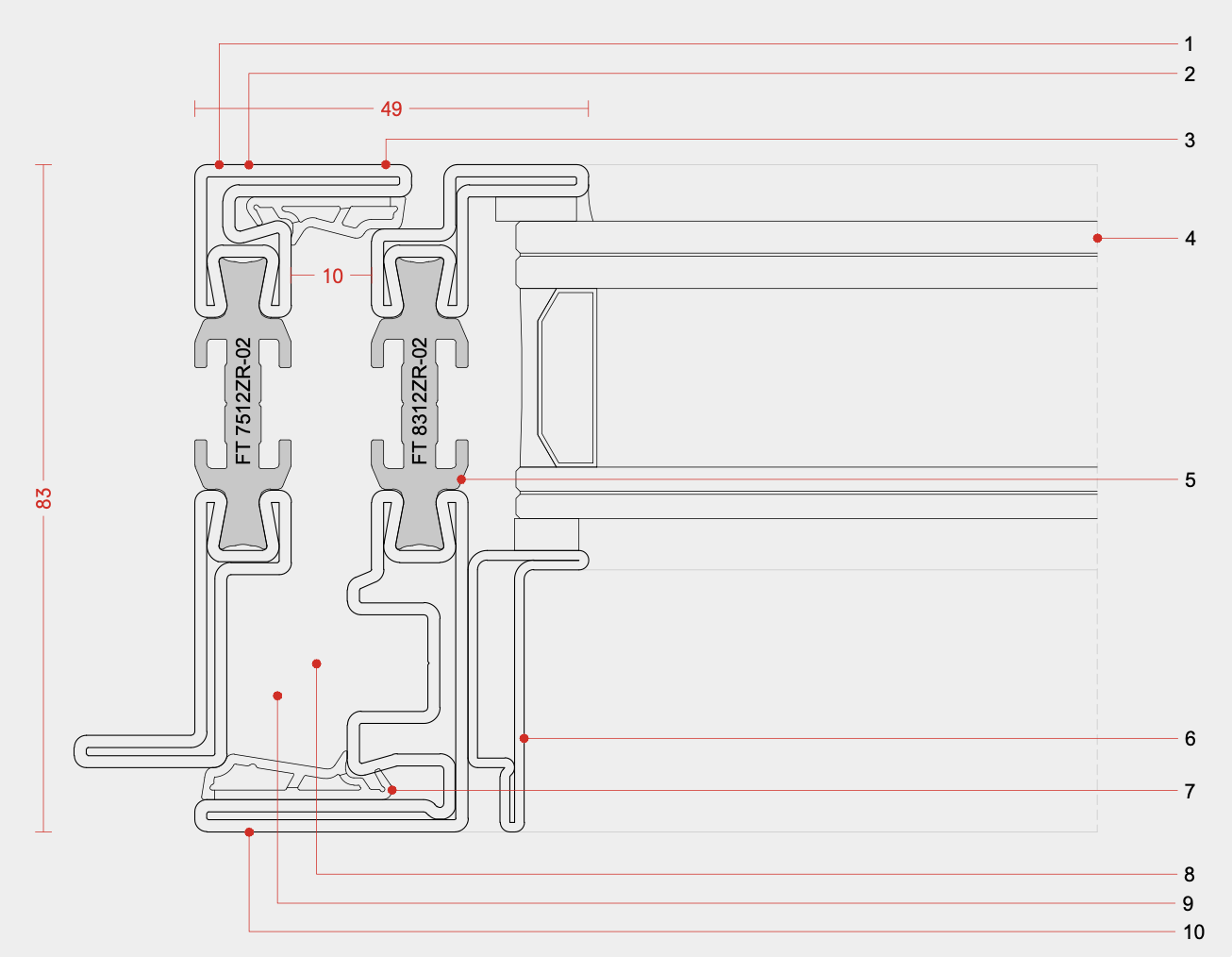

Profile drawing
W75 TB
1. cold formed and sharp-edged 1,5 mm thick galvanized steel profiles - high precision production lines
2. continuously laser welded profile, high mechanical performance
3. can be both internally and externally flush or overlapping, or externally flush and internally overlapping
4. profile depth compatible with insulating glass up to 55 mm
5. fiberglass-reinforced polyamide insulator
6. wide choice of glazing beads, rectangular, triangular and double “L” shape
7. EPDM co-extruded sealing gaskets
8. wide choice of specific fittings, including both visible and conceived hinges
9. side-hung, top-hung and bottom-hung windows, tilt and turn, pivoting windows, sliding and folding doors
10. surface finishes in any customized or RAL colours, for a great planning freedom
W75 TB
OTTOSTUMM
