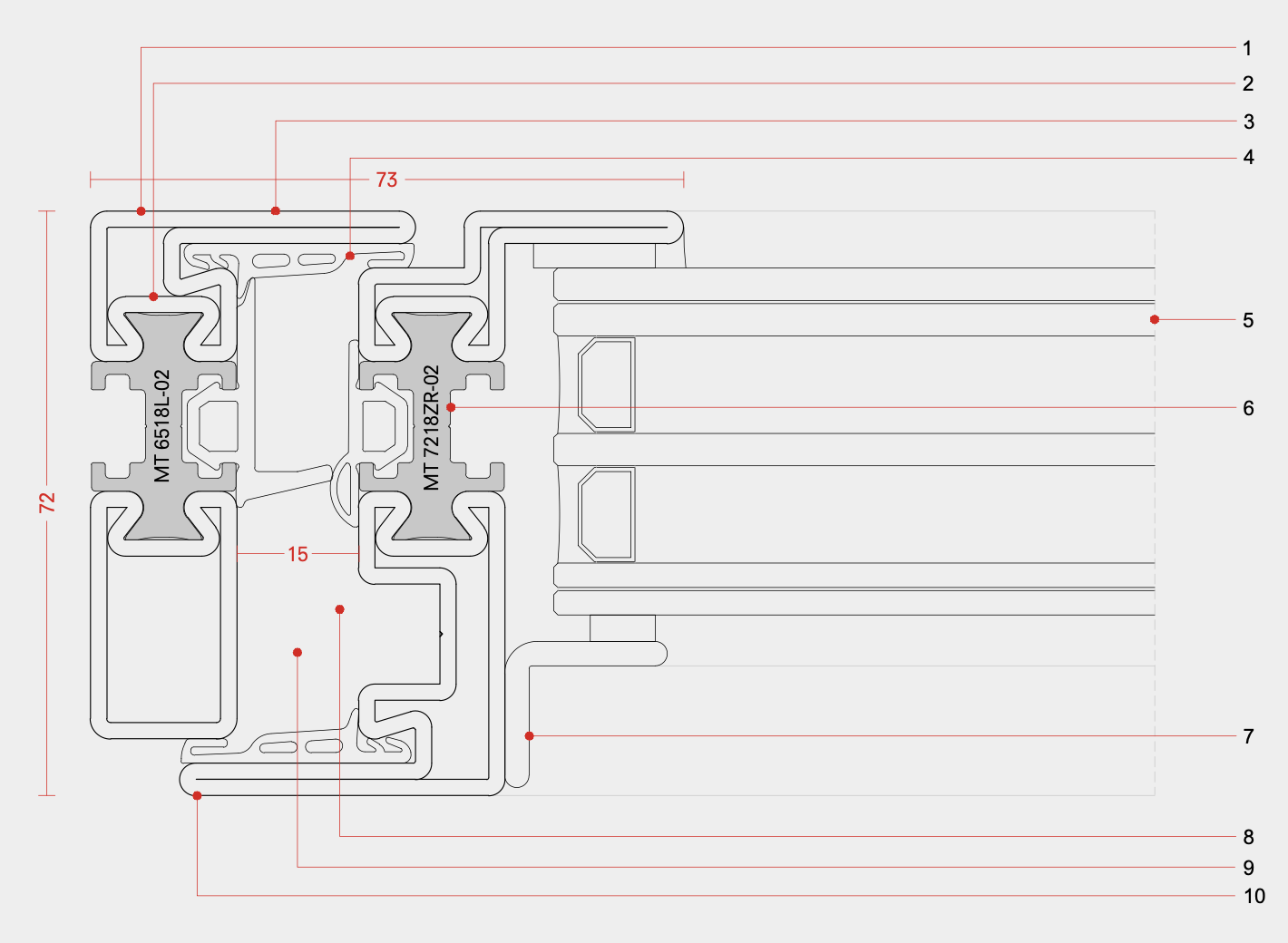

Profile drawing
M65 TB
1. 2 mm tubolar profile in galvanized steel with high moments of inertia
2. continuously welded profile, high mechanical performance
3. external flush and internal overlapping sightlines
4. mechanically fixed rebate gaskets
5. profile depth compatible with high performance insulating glass
6. thermal barrier in PA 6.6 polyamide
7. choice of different glazing beads
8. wide choice of specific fittings, including both visible and conceived hinges
9. any kind of openings: side-hung, top-hung and bottom-hung windows, tilt and turn, pivoting and folding doors.
10. surface finishes in any customized or RAL colours, for a great planning freedom
M65 TB
