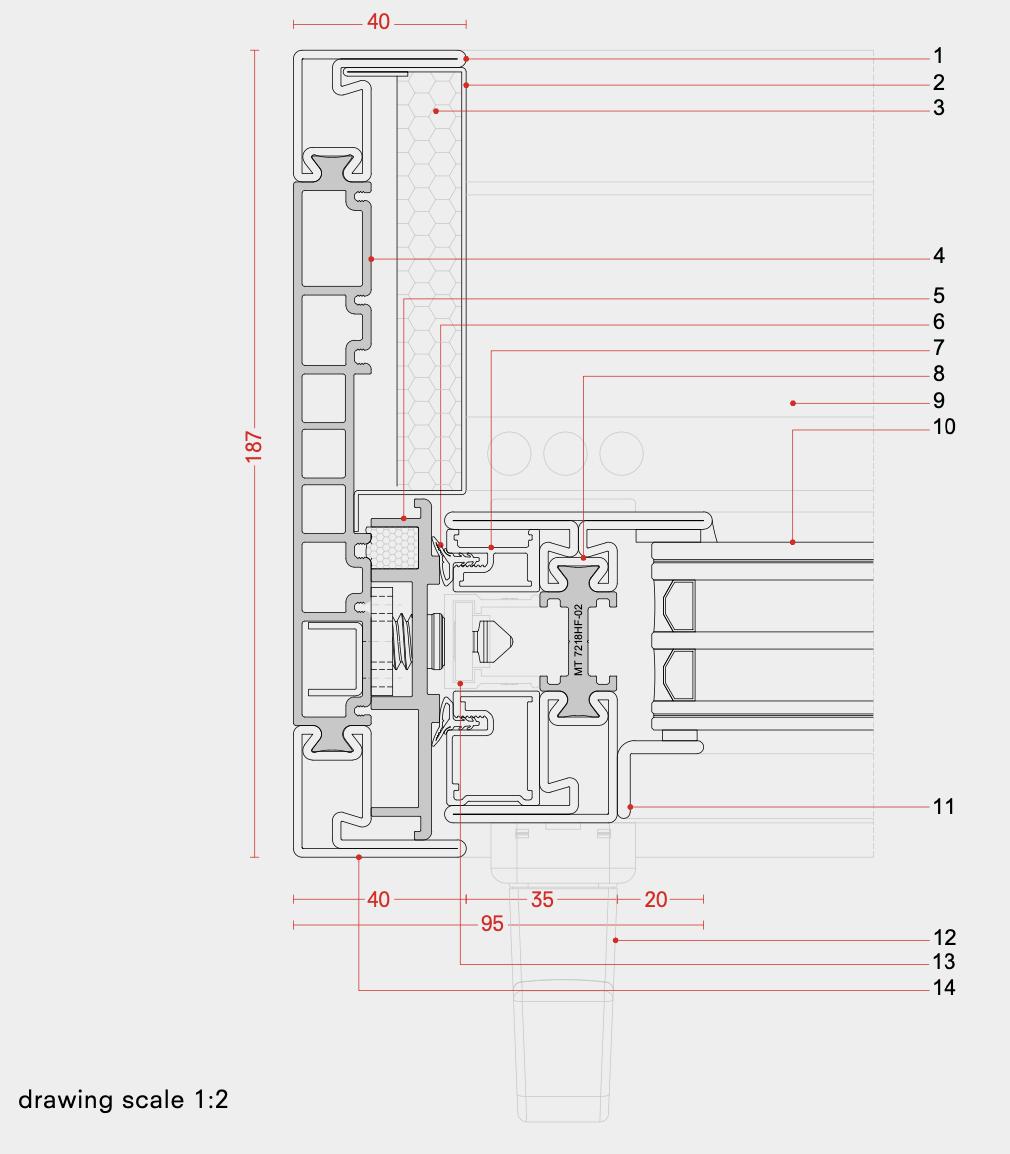

Profile drawing
MLS72 TB
  • 1. continuously laser welded profile, thickness 2 mm
  • 2. aesthetic cover cap with insulating material
  • 3. insulator
  • 4. glassfibre reinforced PA 6.6 polyamide
  • 5. insulated front strike
  • 6. rebate gaskets
  • 7. gasket groove
  • 8. thermal break profiles, available in galvanized steel, Cor-ten steel and stainless steel AISI 316L 2B
  • 9. thermally insulated stainless steel threshold
  • 10. compatible with insulating glazing, including security glass
  • 11. tubolar snap on or “L” shaped, angular glazing beads
  • 12. choice of handles with different design
  • 13. upto400kg
  • 14. perimeter wall recessed frame
MLS72 TB
